UPS Module for Raspberry Pi Pico Board Uninterruptible Power Supply UPS HAT Power Management Expansion Board 5V,Monitoring Battery Operating Status via I2C Bus
4.9 (133 items)
Limited Time SaleUS$12.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217019514 | Release Date | 2026/04/19 | List Price | US$8.40 | Model Number | 217019514 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

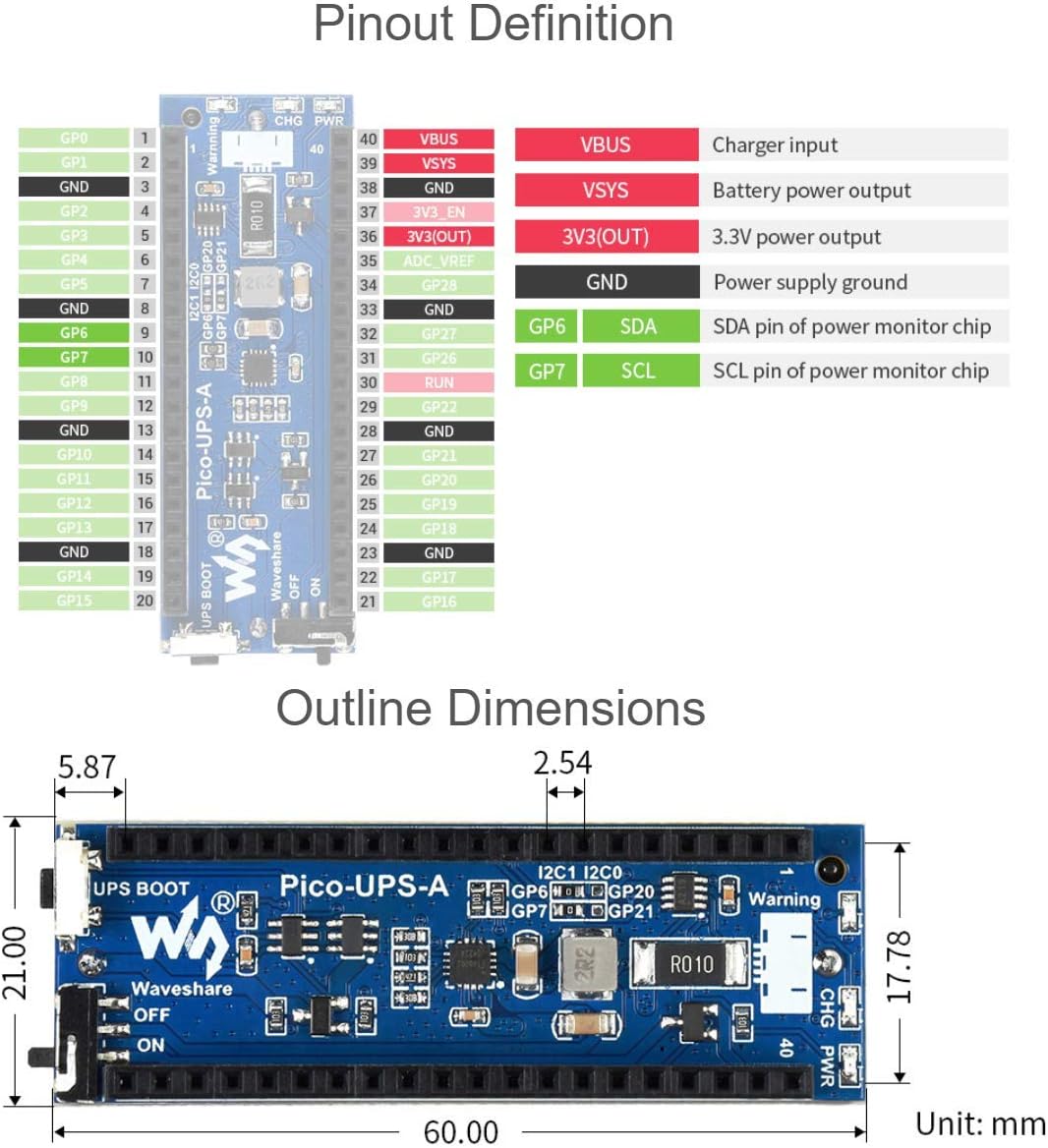

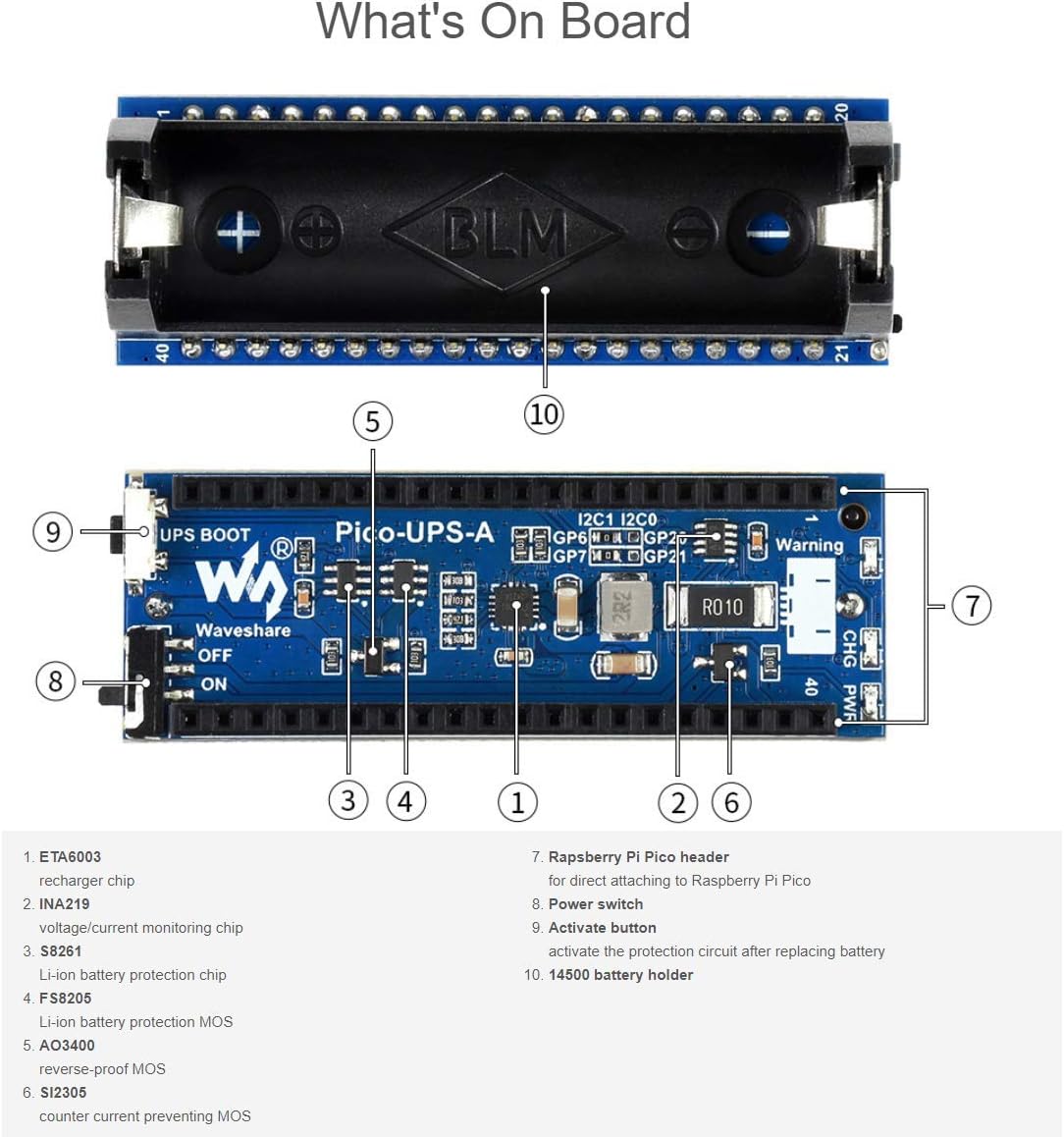

OverviewThe Pico-UPS-A is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-ion battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus.1.Uninterruptible Power Supply For PicoKeeps Your Pico Running While Recharging, Monitoring Battery Status Via I2C2.Raspberry Pi Pico Header CompatibilityOnboard Female Pin Header For Direct Attaching To Raspberry Pi PicoSpecificationsRECHARGE VOLTAGE--5VCONTROL BUS--I2CBATTERY SUPPORT--14500 Li-ion battery (NOT included)DIMENSIONS--60 × 21mmWhat's On Board1.ETA6003recharger chip2.INA219voltage/current monitoring chip3.S8261Li-ion battery protection chip4.FS8205Li-ion battery protection MOS5.AO3400reverse-proof MOS6.SI2305counter current preventing MOS 7.Rapsberry Pi Pico headerfor direct attaching to Raspberry Pi Pico8.Power switchActivate buttonactivate the protection circuit after replacing battery9.14500 battery holderPackage ContentPico-UPS-A x1NoteRaspberry Pi Pico and Li-ion battery are NOT included.Development Resources is provided , please contact us if you have any problem
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Incorporates Li-ion battery switching charger with dynamic power path management, more stable power supply.I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
- Onboard recharging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
| UPC | 717186096931 |
|---|---|
| Brand | waveshare |
| Color | UPS Module for Raspberry Pi Pico |
| Manufacturer | Waveshare |
| Model Number | UPS Module for Raspberry Pi Pico |
| BuiltIn Media | Pico-UPS-A x1 |
| Mfr Part Number | UPS Module for Raspberry Pi Pico |
